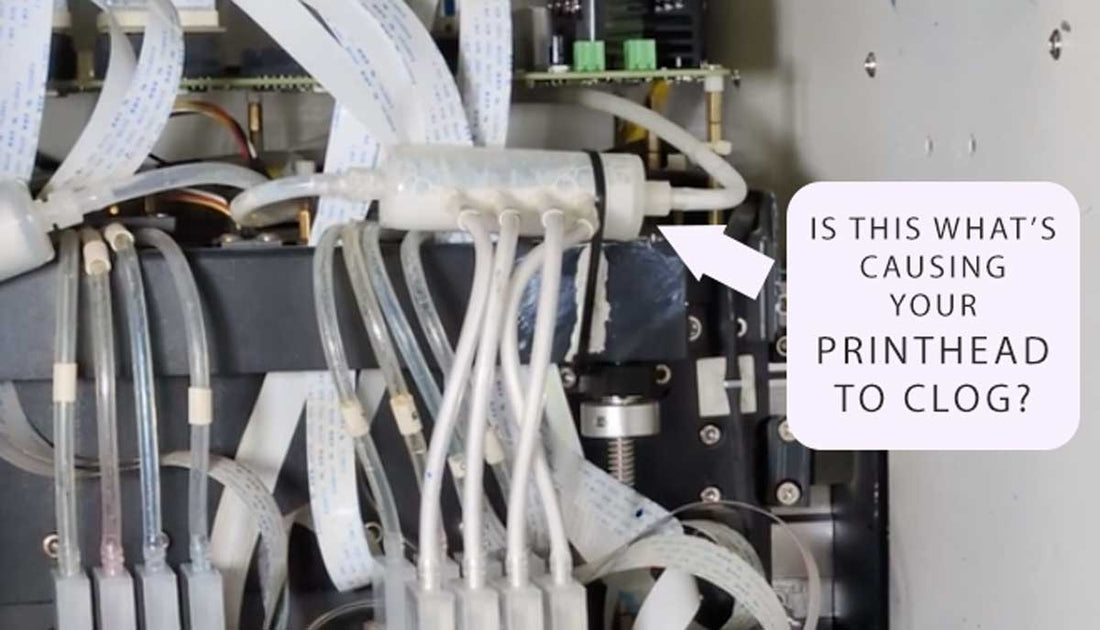

White Ink Manifold Maintenance for DTF Printers: The Hidden Cause of Clogged Printheads

Why Cleaning Your White Ink Manifold Can Extend Printhead Life and Improve Print Quality

If you've ever replaced a DTF printhead only to find that the new one begins having nozzle issues shortly afterward, you may have overlooked one of the most important components in your ink delivery system—the white ink manifold.

At DTF Tech Gurus, we regularly see customers focus on dampers, capping stations, and printheads while completely forgetting about the manifold that feeds them. Unfortunately, neglecting this component can undo every other maintenance procedure you've performed.

This article is based on one of our technical training videos demonstrating maintenance on the Imperial DTF X5 Production System. While the video specifically covers the X5, the same concepts apply to many DTF printers on the market, especially the numerous Chinese-manufactured systems that utilize similar white ink circulation and manifold designs.

Why the White Ink Manifold Matters

White DTF ink is unlike CMYK inks.

It contains a very high concentration of titanium dioxide pigment, which gives transfers their opacity on dark garments. Unfortunately, titanium dioxide is also extremely heavy compared to the other pigments in DTF inks.

Even with proper agitation and circulation, microscopic pigment particles slowly begin settling anywhere ink movement slows down.

One of the biggest collection points is the white ink manifold.

Many operators assume that because the ink tanks are circulating properly, the entire white ink system remains clean. In reality, sediment can begin accumulating inside the manifold much faster than expected.

Over time this buildup becomes a thick sludge that eventually works its way into the dampers and ultimately into the printhead.

The Video Demonstration

In our restoration project, we worked on a four-year-old DTF printer that had essentially been abandoned. When we removed the white ink manifold, the inside clearly showed thick white sludge coating the internal passages.

The surprising part?

The age of the printer wasn't the issue.

We've seen similar buildup in machines that are only a few months old when maintenance schedules weren't followed consistently.

The lesson is simple:

Ink doesn't care how old your printer is—it settles whenever it has the opportunity.

How Sludge Damages Printheads

The danger isn't simply having sediment inside the manifold.

The real problem occurs during cleaning cycles.

Here's what happens:

1. White pigment settles inside the manifold.
2. The capping station performs a cleaning cycle.
3. Ink begins moving through the manifold.
4. The accumulated sludge breaks loose.
5. That sludge travels through the dampers.
6. The debris enters the printhead.

Once contamination reaches the printhead, it can cause:

• Missing nozzles
• Intermittent nozzle checks
• Poor white opacity
• Micro banding
• Color shifts
• Reduced printhead life
• Permanent nozzle loss

Many operators mistakenly believe their printhead has failed when the real culprit is contamination upstream.

Inspect the Manifold During Printhead Replacement

Whenever you're replacing:

• Epson i3200 printheads
• Dampers
• White ink lines
• Ink delivery components

you should also inspect the manifold.

Replacing an expensive printhead while leaving contaminated ink passages in place is similar to installing a new fuel injector into a dirty fuel system. Eventually, the contamination reaches the new component.

At DTF Tech Gurus, we recommend checking the manifold any time major white ink maintenance is being performed.

Cleaning vs. Replacing the Manifold

Depending on the condition, you may choose either option.

Clean the manifold if:

• There is only minor pigment buildup.
• Internal passages remain unrestricted.
• The fittings are in good condition.

Replace the manifold if:

• Heavy sludge is present.
• Internal passages are difficult to clean.
• The fittings are damaged.
• The printer has experienced repeated white ink failures.

Considering the cost of an Epson printhead, replacing an inexpensive manifold is often cheap insurance.

Removing the White Ink Manifold

On many DTF systems, the manifold uses Luer Lock fittings, making removal fairly straightforward.

When disconnecting:

• Place absorbent towels beneath the manifold.
• Expect residual ink inside the lines.
• Disconnect each fitting carefully to avoid spills.
• Inspect the internal passages immediately after removal.

If you see thick white deposits, you're looking at settled titanium dioxide pigment—not simply dried ink.

Why Newer DTF Printers Are Better

Many modern DTF printers, including newer versions of the Imperial DTF X5, feature more robust manifold designs that are securely mounted to the carriage assembly.

Older printers often used manifolds that were suspended loosely, allowing additional vibration and areas where pigment could settle.

While newer designs improve reliability, they do not eliminate the need for maintenance.

White ink chemistry remains the same regardless of the printer manufacturer.

This Applies to More Than Just the X5

Although this maintenance procedure was demonstrated on the Imperial DTF X5 Production System, the principles apply to most commercial DTF printers.

Many systems manufactured in China share very similar ink delivery components, including:

• White ink manifolds
• Dampers
• Luer Lock fittings
• White ink circulation systems
• Epson i3200 printhead configurations

Whether your printer carries an Imperial DTF badge or another manufacturer's name, the maintenance concepts remain largely the same.

Always refer to your manufacturer's recommendations for service procedures, but don't overlook the manifold simply because it isn't discussed often.

Preventive Maintenance Tips

To reduce white ink contamination:

• Agitate white ink bottles thoroughly before filling the printer.
• Keep white ink circulation functioning properly.
• Inspect dampers during scheduled maintenance.
• Check the manifold whenever replacing a printhead.
• Perform regular nozzle checks.
• Follow the manufacturer's maintenance schedule.
• Don't wait until print quality declines before inspecting the ink delivery system.

Preventive maintenance is almost always less expensive than replacing a damaged printhead.

Summary

The white ink manifold is one of the most overlooked components on a DTF printer, yet it plays a critical role in protecting your printheads.

If sludge accumulates inside the manifold, every cleaning cycle has the potential to send that contamination directly into the dampers and printheads—leading to costly repairs and unnecessary downtime.

Whether you're operating an Imperial DTF X5 or another commercial DTF printer with a similar white ink delivery system, adding the manifold to your regular maintenance routine can significantly improve reliability and extend the life of your printheads.

At DTF Tech Gurus, we've found that the best repairs are often the ones you never have to make. A few extra minutes spent inspecting the white ink manifold today can save hundreds—or even thousands—of dollars in printhead replacements tomorrow.
