When it comes to protecting your DTF printer's printheads, few maintenance items are more important than replacing dampers on a regular schedule. Dampers are inexpensive compared to the cost of a printhead, yet many operators ignore them until they begin causing print quality issues—or worse, permanent printhead damage.

In this guide, the DTF Tech Gurus walk through the proper procedure for replacing dampers safely while minimizing ink spills and preventing contamination.

What Does a Damper Do?

A damper is much more than just a connector between the ink line and the printhead. It serves several important functions:

• Filters contaminants before they reach the printhead
• Maintains consistent ink pressure
• Acts as a small ink reservoir
• Helps prevent air from entering the ink system

Over time, dampers become restricted with pigment buildup and normal wear. As flow decreases, the printhead must work harder to pull ink, increasing the chance of nozzle loss, air intrusion, and ultimately printhead failure.

Tools You'll Need

Before beginning, gather the following:

• Replacement damper
• Hemostat or non-cutting hose clamp
• Side cutters or flush cutters
• Thin, absorbent shop towels or paper towels
• Gloves (recommended)

Having everything within reach before removing the old damper makes the replacement much easier and helps minimize ink spills. Or you could just buy a Imperial's Tool kit

Protect the Printhead Electronics First

Before touching the ink system, place absorbent towels beneath the printhead carriage.

This simple step protects the ribbon cables and electronics from ink drips.

Why is this important?

If ink gets onto ribbon cables and the printer is powered on before it's completely cleaned, it can short electronic components and damage expensive boards or the printhead itself.

A few towels can prevent a very expensive repair.

Step 1: Clamp the Ink Line

Using a hemostat or smooth-jaw clamp, pinch off the ink line feeding the damper.

This prevents ink from continuously flowing once the damper is removed and significantly reduces the amount of spilled ink.

Avoid using locking pliers with serrated jaws that may permanently damage the tubing.

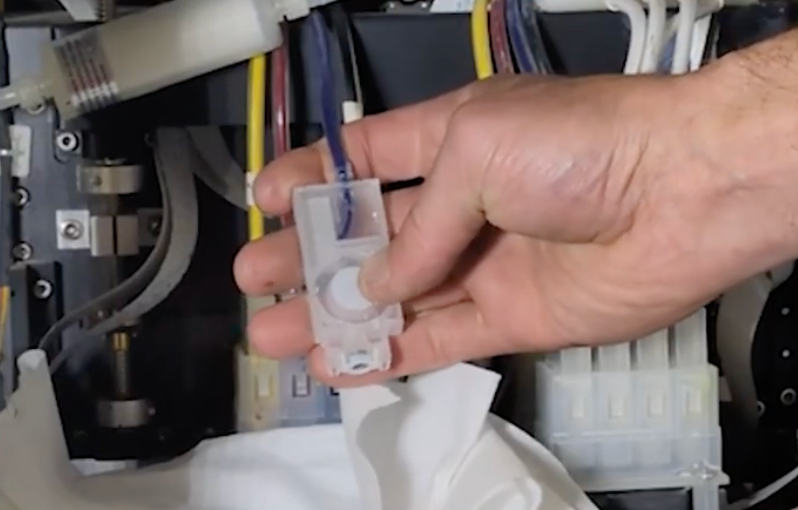

Step 2: Remove the Old Damper

Lift the damper straight upward from the printhead.

As you remove it:

• Keep the damper upright.
• Avoid pressing the small plunger on the side.
• Pressing the plunger releases ink and creates unnecessary mess.

Even with the ink line clamped, expect a small amount of ink to drip.

Step 3: Remove the Damper from the Ink Line

Hold a shop towel around the connection before cutting or removing the old damper.

Position your side cutters as close to the old damper as possible to preserve as much tubing length as you can.

Once removed, inspect the tubing.

A clean, square cut ensures the new damper seals properly and reduces the chance of air leaks.

Step 4: Install the New Damper

Many technicians prefer installing every damper in the same orientation.

A common practice is positioning the damper with the plunger facing left. Keeping every damper oriented the same way makes future maintenance easier and helps prevent twisting of the ink lines.

Push the tubing:

1. Over the barbed fitting.
2. Continue pushing until the tubing seats firmly against the top of the damper.

A partially installed ink line can introduce air into the system.

Once fully seated, release the hemostat to restore ink flow.

Step 5: Prime the Damper

With the ink line connected, slowly prime the damper.

As ink enters the damper you should see:

• Ink filling the rear filter chamber
• Ink gradually moving through the damper body

Only use enough priming to completely fill the damper.

If you continue priming until ink drips from the bottom, you've overfilled it.

Before installation, inspect carefully for:

• Ink drips
• Lint
• Paper towel fibers
• Dust or debris

Any contamination introduced here can eventually make its way into the printhead.

Step 6: Reinstall the Damper

Carefully slide the damper back into its bracket.

As it seats, you'll feel the final portion of travel as it fully engages the printhead fitting.

After installation:

• Verify the damper sits straight.
• Make sure it isn't twisted.
• Confirm it matches the height of the surrounding dampers.
• Check for any visible leaks.

A properly installed damper should line up evenly with the rest of the set.

How Often Should Dampers Be Replaced?

Preventive maintenance is far less expensive than replacing printheads.

The DTF Tech Gurus recommend the following schedule:

CMYK Dampers

Replace approximately once per year under normal production.

Some operators wait until they fail, but doing so significantly increases the risk of starving the printhead of ink and shortening its lifespan.

If you don't want to do it yourself - then hire DTF Tech Gurus to do their preventive maintenance for you.

White Ink Dampers

White ink contains much heavier pigment and places considerably more stress on the dampers.

Replace white dampers approximately every 25–30 rolls of film.

Following this schedule helps maintain consistent white ink flow while reducing clogging and nozzle loss.

Why Damper Maintenance Matters

Many print quality problems that appear to be bad printheads actually begin with worn dampers.

Symptoms of failing dampers include:

• Missing nozzles
• Random nozzle dropouts
• Air bubbles in ink lines
• Inconsistent white coverage
• Banding
• Frequent cleaning cycles
• Poor ink flow

Ignoring these warning signs forces the printhead to compensate for restricted ink delivery, increasing wear over time.

A new set of dampers costs only a fraction of what a replacement printhead does.

Replacing dampers is one of those maintenance procedures that gets easier every time you perform it. The first replacement may be a little messy, but with proper preparation, careful handling, and a consistent maintenance schedule, you'll greatly extend the life of your printheads and reduce costly downtime.

If you're operating an X5 DTF Production System, Velox, Spartan, Binterjet, or Nusign printer, regular damper replacement should be part of your preventive maintenance routine—not something you wait to do after print quality begins to suffer.

The best time to replace a damper is before it causes a problem.
