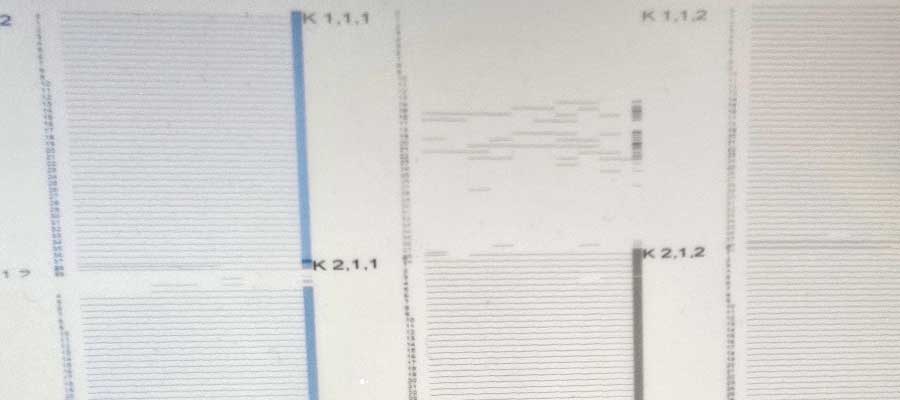

Why Is My DTF Printer Producing an Inconsistent Nozzle Check?

Understanding the Causes, Solutions, and Best Practices for Reliable Print Quality

If you've been printing DTF transfers for any length of time, you've probably experienced the frustration of running a nozzle check that looks perfect one minute and terrible the next.

One cleaning cycle later it looks great, then 5 minutes later, it's missing nozzles again.

This type of inconsistent nozzle check is one of the most common service calls we receive. The good news is that inconsistent nozzle checks often point to an underlying mechanical, environmental, or ink delivery issue—not a bad printhead.  But if you don't address it quickly, it could well turn into a bad printhead.

Learning to recognize the symptoms early can save thousands of dollars in unnecessary parts replacement while dramatically improving print consistency.

What Is a Nozzle Check?

A nozzle check is a diagnostic pattern that verifies every nozzle in the printhead is firing correctly.

A healthy nozzle check should show:

• Complete lines
• No gaps
• No deflection
• Consistent density
• Sharp edges

If sections disappear, change positions, or randomly recover after a cleaning cycle, the printer is telling you something is changing inside the ink delivery system.

The important word here is changing. A completely clogged nozzle usually stays clogged.  An inconsistent nozzle check indicates something is fluctuating.

What Does an Inconsistent Nozzle Check Mean?

When missing nozzles move around from one nozzle check to the next, the problem is rarely the printhead itself.

Instead, something is affecting ink flow. Think of the ink delivery system like drinking through a straw. If someone pinches the straw, introduces air bubbles, or partially blocks it, the amount of liquid reaching your mouth constantly changes. Your DTF printer works exactly the same way.

The printhead simply sprays whatever ink reaches it.

---

IMPORTANT TO KNOW

Gravity Supplies the Ink to the Printhead

The ink tanks are positioned above the printheads. Gravity provides a small amount of hydrostatic pressure that allows ink to naturally flow down toward the printhead.

If the system were only gravity-fed, however, ink would continue flowing and eventually drip out of the printhead.

The Damper Regulates Pressure

The damper serves several functions:

• Acts as a small ink reservoir.
• Filters contaminants before they reach the printhead.
• Dampens pressure fluctuations caused by carriage movement.
• Helps maintain a slight negative pressure at the printhead.

To learn more about dampers read our article:
  Why Dampers are so important to your DTF Printer

Where Does the Vacuum Come From?

The slight negative pressure is created by the balance of several factors:

• The height difference between the ink tanks and the printhead.
• The sealed nature of the ink delivery system.
• The resistance of the dampers.
• Surface tension of the ink.
• The capping station and maintenance system during cleaning cycles.

During a head cleaning, the maintenance station's pump creates a much stronger temporary vacuum by sealing against the printhead and pulling ink through the nozzles. After cleaning, the system returns to its normal slight negative pressure.

---

OK Back to Nozzle Checks - The Most Common Causes

1. Air Entering the Ink System

This is the number one cause of intermittent nozzle loss.

Even a tiny air leak can interrupt ink flow enough to cause random missing nozzles.

Common locations include:

• Loose ink line fittings
• Cracked tubing
• Damaged O-rings
• Poorly seated dampers
• Worn manifold seals
• Air leaking around ink cartridges or tanks

Symptoms include:

• Nozzle check changes every time
• Cleaning temporarily fixes the issue
• Missing nozzles move around
• Ink dripping from the printhead
• Dampers that never stay full

2. Failing Dampers

Over time, damper membranes harden and lose their ability to regulate flow.

When this happens:

• Ink flow becomes inconsistent.
• Air enters more easily.
• White ink starvation increases.
• Random nozzle loss appears.

A damper may still look perfectly fine externally while failing internally. For production printers, dampers should be considered routine maintenance items—not lifetime components.

3. Ink Separation

White ink contains heavy titanium dioxide pigments. Without proper agitation, these pigments settle rapidly. We've said it in numerous articles, and bottom line - "White ink is a bugger". But if you understand the chemistry and how the printers work, you can take steps to minimize the issues caused by digital inks with pigment solids.

When pigment settles:

• Ink viscosity changes.
• Some nozzles receive thicker ink.
• Other nozzles receive thinner carrier fluid.
• White channels begin dropping nozzles.

This is why automated white ink circulation and external ink agitation systems are so important. Read our article "Why Your White Ink is Clogging"

Even CMYK inks benefit from periodic mixing over time.

4. Dirty Capping Station

The capping station seals against the bottom of the printhead.

Its job is to:

• Keep nozzles hydrated
• Allow proper cleaning cycles
• Maintain vacuum during head cleans

If the cap top is dirty or warped:

• The printer cannot create enough suction.
• Cleanings become ineffective.
• Nozzles randomly disappear.
• Drying accelerates.

A simple cap cleaning often restores proper performance. Check out the article on "The Most Overlooked Preventative Maintenance on DTF Printers"

5. Worn Wiper Blade

The wiper blade removes ink and debris from the bottom of the printhead.

If it becomes:

• nicked,
• curled,
• hardened,

• or coated with dried ink (shown in the image above - this operator never or rarely cleaned the wiperblade a $5000+ mistake on a 5 printhead printer)

it simply smears contamination instead of removing it.

Contaminated nozzle plates produce inconsistent firing patterns.

6. Environmental Conditions

Many operators underestimate how much temperature and humidity affect DTF printing.

Low humidity accelerates evaporation. High temperatures (over 85 F) creates a lot of issues with digital components.

Excessive airflow from HVAC systems can dry nozzle plates surprisingly quickly.

Ideal conditions generally include:

• Temperature: 68–78°F (20–26°C)
• Relative Humidity: 45–60%

Large swings outside these ranges often contribute to inconsistent nozzle checks.

7. Poor Ink Quality

Not all DTF inks are formulated equally.

• Read are article on "How DTF Inks are Manufactured"

High-quality ink isn't just about color—it directly impacts printhead reliability.

8. Printhead Face Contamination

Small fibers from film, powder dust, dried ink, or overspray can accumulate on the nozzle plate. Even microscopic contamination can deflect droplets enough to appear as missing nozzles.

Regular printhead cleaning using approved cleaning solution and lint-free foam swabs helps prevent buildup. Never scrub aggressively.

Check out our video on "How to Clean a Printhead Properly"

9. Weak Suction During Cleaning

The maintenance station relies on vacuum. If suction is reduced because of clogged waste lines, failing pumps, dirty cap tops, blocked tubing, your cleaning cycles cannot remove trapped air effectively.

How Often Should You Perform Nozzle Checks?

Many operators only perform nozzle checks after they notice print quality problems.

By then, damage may already be occurring. A better practice is preventive monitoring. We recommend at the beginning of every shift, and if you have a busy day, do at least another one after lunch break.  Remember digital printers like to run, so if you aren't printing for the week at least do nozzle checks and run some promotional items that you can use....just get ink running through the lines and heads.  If not every day, at least every other.

Running one nozzle check only takes a few moments but can prevent hundreds of dollars in wasted film, ink, powder, and labor.

If only a few nozzles are missing:

• Wait a minute.
• Run another nozzle check.
• Evaluate whether they recovered naturally.

If the pattern changes:

Investigate the root cause. Repeated cleaning only treats the symptom.

If the pattern stays identical:

You may have an actual clog requiring cleaning. Learning the difference saves enormous amounts of ink over time.

Preventive Maintenance Is the Best Fix

Most inconsistent nozzle checks can be prevented with routine maintenance.

Develop a schedule that includes:

• Daily nozzle checks
• Cleaning the capping station
• Cleaning the wiper blade
• Inspecting dampers
• Monitoring humidity
• Agitating white ink (get a DTF Rock N' Roller Ink Mixer)
• Periodically mixing CMYK inks
• Checking ink line connections
• Inspecting for leaks
• Replacing maintenance components before they fail

Preventive maintenance is almost always less expensive than replacing printheads.

An inconsistent nozzle check is rarely random. It is your printer's early warning system, signaling that something in the ink delivery process is beginning to fail. Ignoring those warning signs often leads to increased cleaning cycles, wasted consumables, poor print quality, and, eventually, premature printhead failure.

Rather than repeatedly running cleaning cycles, treat each inconsistent nozzle check as a diagnostic clue. Inspect the entire ink delivery path—from the ink supply and dampers to the capping station, environmental conditions, and maintenance components. Finding and correcting the root cause will produce far more reliable results than trying to "clean away" the symptoms.

The best DTF operators don't wait until prints start failing. They perform nozzle checks consistently, monitor trends over time, and use those patterns to identify problems before they become expensive repairs. A two-minute inspection at the start of every shift can save hours of downtime and thousands of dollars in replacement parts over the life of your printer.
