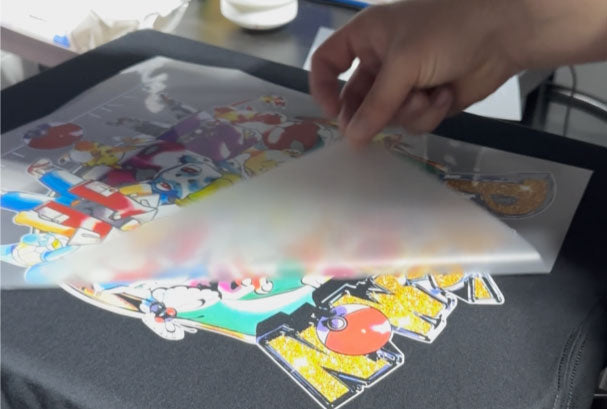

Why a DTF Transfer ends up "Cracking"

It is something that virtually everyone that gets into DTF asks at some point.  The answers you can get from people range from spot on to the absolutely ridiculous!  The cracking after pressing isn’t just a nuisance, it is a signal that something is wrong in one of the processes: making or pressing. No need to fret, there are pretty easy fixes to whatever the issue may be.

Let's go through some of the reasons why, and then discuss fixes for them.

What “Cracking” Really Means in DTF

When a DTF transfer cracks, the ink film is failing to stretch with the garment. Instead of bonding as a flexible layer, it becomes brittle or poorly adhered. This usually shows up:

• Immediately after pressing (bad sign)
• After the first stretch test
• Or typically after a wash cycle

Cracking = either poor adhesion or poor elasticity

Under-Cured DTF Adhesive Powder

If your powder isn’t fully melted and bonded to the ink, the transfer will sit on the fabric instead of locking into it. Here are some things to look for on that problem transfer:

Signs:

• Print looks okay at first, but cracks when stretched
• Powder feels slightly grainy or chalky on the back
• Weak wash durability (the texture can look like reptile skin)

Fix:

• Make sure powder reaches full melt (smooth, glossy look—not sandy)
• Typical cure range: 225–250°F (107–121°C) for 2–3 minutes (varies by powder) Make sure you test it out before you send hundreds of transfers out. Especially if you change powder, they aren't all equal!
• Ensure even heat across your oven or shaker.  Either use a heat probe or heat tape to test out different zones of your dryer.

Typically happens when someone in the shop gets the brillant idea of running it through the dryer faster.  Changing your parameters means it changes your outcome of your transfers.

Over-Cured = Brittle Ink Film

If you overbake the powder or overheat the transfer, you can harden the adhesive layer, making it lose flexibility. The signs for this should be pretty obvious if you are paying attention to your output.

Signs:

• Print feels stiff or plastic-like
• Cracks immediately when bent or stretched
• Poor “hand feel.” It feels like a brittle plastic bag on your shirt. (check out the article on Hand Feel)

Fix:

• Dial back oven temps or dwell time
• Avoid “just to be safe” overheating
• Check actual temp vs. displayed temp (many ovens drift)

Incorrect Press Settings

Your heat press is just as important as your curing stage. This is probably one of the biggest mistakes in the field we see.  Our technicians walk into the large majority of shops and the operators have the heat presses running at 330 F with tons of pressure and 15 seconds.  For the powder we sell at Imperial, this is way overdoing it.  We're assuming people are thinking, more heat, the better?  (follow the recipe people)

Common problems:

• Too much pressure → crushes adhesive layer → and you are burning the shirt underneath!
• Too little pressure → incomplete bonding (don't see this much)
• Wrong temperature → poor fusion into fibers→ Usually cause of cheap heat presses that aren't accurate or old Bessie still turns on, but really doesn't get to temperature.

Ideal baseline: Of Imperial DTF adhesive (check your manufacturer's recommendations)

• Temp: Cotton - 285–300°F  / Poly - 265-285°F
• Pressure: Medium pressure
• Time: Cotton - 10-15 seconds /  Poly 5-10 seconds

• Optional second press (3-5 sec) with cover sheet for durability (if we ran a shop we would always do a second press, especially on cotton.

Low-Quality or Simply the Wrong Powder

Not all powders are created equal.

Some powders:

• Lack elasticity
• Don’t bond well to certain fabrics
• Become brittle after curing

Signs:

• Consistent cracking across multiple jobs
• Happens even when the process seems correct

Fix:

• Use high-elasticity DTF powder designed for stretch
• Match powder to application (cotton vs poly vs blends) For example with Imperial DTF Adhesive we sell three different kinds:  Kyber Powder- our most aggressive adhesive, somewhat standard hand feel.  Starbase - medium adhesive strength, very soft feel, easy to use, and our most popular adhesive.  Galactic - This actually has white booster activation, amazing soft feeling prints, and picks up great detail.

• Avoid cheap bulk powders that sacrifice flexibility

Ink Layer Issues (Too Much or Too Little)

Ink thickness directly affects flexibility:

Too much ink: Thick, heavy prints, reduced stretch → cracking

Too little ink: Weak structure  → Poor bonding with powder

Fix:

• Optimize your ink limits and profiles
• Ensure proper white ink base (not overly heavy)
• Balance color + white layers

Fabric Type Matters More Than You Think

Some garments naturally stress DTF prints more than others.

High-risk fabrics:

• Cotton - especially fabric with a bunch of moisture, hoodies
• Stretch fabrics (spandex blends)
• Tight-fitting garments

Why?

They stretch more than the ink layer can handle.

Fix:

• Use high-stretch powder
• Adjust press technique - and pre-press hoodies before putting transfer on to release some of the moisture from the garment.
• Test, test, test before full production runs. For new garments we always recommend testing your process out, especially on those large run orders.  No one wants a hundred or even thousands of prints coming back!

No Post-Press - Don't shortcut the process!

Skipping the second press is a mistake many shops make.

Why it matters:

• It improves bonding
• Increases flexibility
• Reduces surface tension in the ink layer
• And if you notice glycol-sweating, put an absorbent cover sheet on the post press

Fix:

After peeling:

• Repress for 5–10 seconds with parchment or Teflon or we like to use an absorbant cover sheet either cotton or we've seen people using canvas for a  textured look.
• Use slightly lower pressure

Environmental & Storage Issues

Humidity and storage conditions can affect powder and film performance. If you are seeing clumping in your adhesive that is a good sign of humidity issues.  Also do not leave a large container open to the air, it will suck all the moisture from the air and absorb in the adhesive.  The same conditions will affect the performance of your film, either attracting adhesive on none print areas, or improper release quality from the film

Fix:

• Store materials in a controlled environment
• Avoid high humidity - make sure you have a way to monitor your humidity (hygrometer)

• Use fresh powder when possible - and always keep covered

Quick Troubleshooting Checklist

If your DTF prints are cracking, check this in order:

1. Is the powder fully cured (not under or over)?
2. Are press settings correct (temp, pressure, time)?
3. Are you using a quality, flexible powder - and is it being stored properly?
4. Is your ink layer balanced - not too thick, not too thin?
5. Did you do a post-press?
6. Are you printing on stretch-heavy garments?

When everything is dialed in, a DTF print should:

• Stretch with the garment
• Snap back without damage
• Survive multiple washes without degradation

If it’s cracking, something in your process is breaking that chain.
