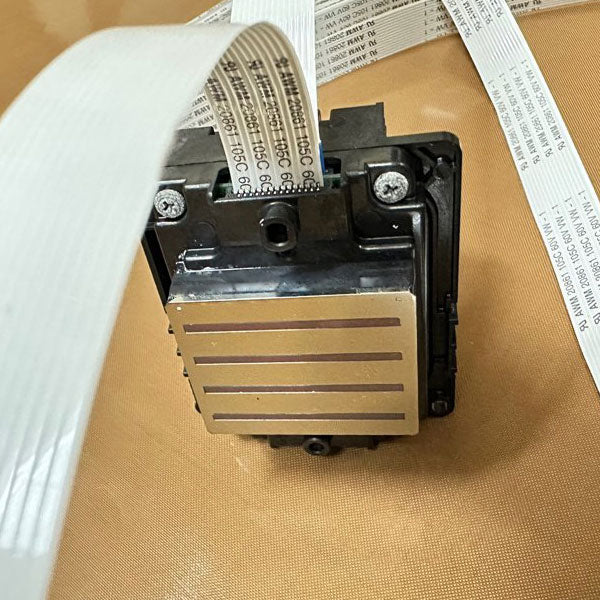

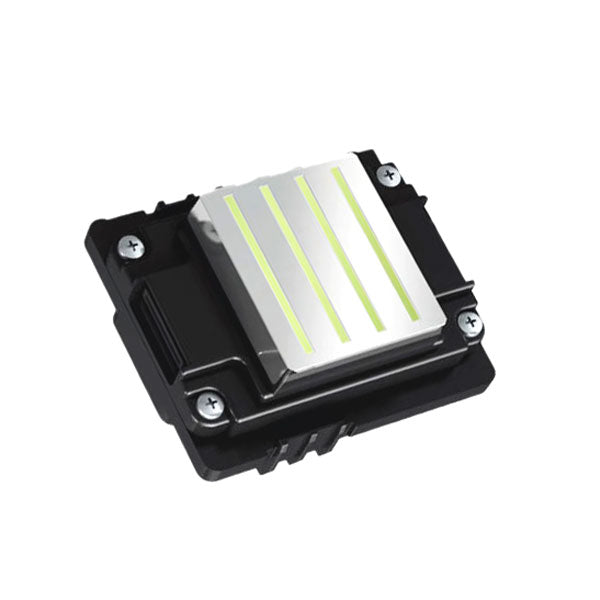

EPSON i3200-A1 (4) Series Printhead - PrecisionCore Head

Epson I3200-A1 Water Printhead (OEM) – 600 DPI PrecisionCore Head for DTF, DTG & Water-Based Inks

The Epson I3200-A1 Water Printhead is a high-performance, cost-effective OEM printhead engineered for professional DTF, DTG, and water-based printing applications. Built with Epson’s advanced PrecisionCore MicroTFP technology, this 1.33-inch wide printhead delivers exceptional image quality, smooth gradients, and high throughput with 600 dpi high-density resolution.

Designed for reliability and precision, the I3200-A1 features a robust MEMS construction and comes complete with an integrated manifold, making it a trusted choice for print shops demanding consistent, high-speed output.

Key Features & Benefits

• OEM Epson I3200-A1 Water Printhead (Made in Japan)
• High-resolution 600 dpi output for sharp, vibrant prints
• 1.33” (33.8 mm) print width for increased production efficiency
• PrecisionCore MicroTFP technology for accuracy and durability
• Compatible with water-based inks including DTF and DTG
• Includes manifold for streamlined installation
• Ideal for Roland and other compatible printer platforms

Important Compatibility Information (I3200-A1 vs I3200-A1 HD)

While the Epson I3200-A1 and I3200-A1 HD printheads share the same physical structure (8 rows, 400 nozzles per row – 3200 total nozzles), they are NOT interchangeable.

• Epson I3200-A1 (Standard Model):
  • Supports up to 4 colors
  • 4 ink inputs (nipples) on the manifold
  • Each color utilizes 2 nozzle rows
• Epson I3200-A1 HD:
  • Supports up to 8 colors
  • 8 ink inputs (nipples)
  • Each color uses 1 nozzle row

⚠️ Always verify your printer model before purchasing. Installing the wrong printhead type can result in compatibility issues or damage.

Technical Specifications

• Ink Type: Water-based (Aqueous)
• Printhead Type: PrecisionCore MicroTFP
• Nozzle Count: 3200 nozzles
• Nozzle Configuration: 8 rows × 400 nozzles
• Nozzle Pitch: 1/300 inch
• Resolution: 300 npi per row / 600 npi per 2 rows
• Max Colors Supported: 4 colors
• Effective Print Width: 33.8 mm (1.33 inches)
• Dimensions (W×D×H): 69.1 × 59.4 × 35.6 mm
• Weight: 82 g
• Droplet Sizes:
  • Binary: 6 pl @ 43.2 kHz
  • 3-level grayscale: 6.3 / 12.3 pl @ 21.6 kHz
  • 4-level grayscale: 3.8 / 6.1 / 9.4 pl @ 21.6 kHz
• Supported Viscosity Range: 3–4 mPa·s
• Country of Origin: Japan

Installation & Warranty Policy

Due to the sensitive nature of DTF and water-based inks:

• All sales are final
• No returns, exchanges, or refunds after installation
• We strongly recommend replacing head cables when installing a new printhead to prevent electrical issues and ensure optimal performance
• We recommend hiring a technician to install your printhead - if you need assistance email us marketing@imperialdtf.com

Why Choose the Epson I3200-A1?

The Epson I3200-A1 is one of the most widely used printheads in the DTF and digital textile printing industry due to its balance of cost, speed, and precision. Whether you're replacing a failed head or upgrading your production capabilities, this printhead delivers the reliability and print quality serious shops demand.
