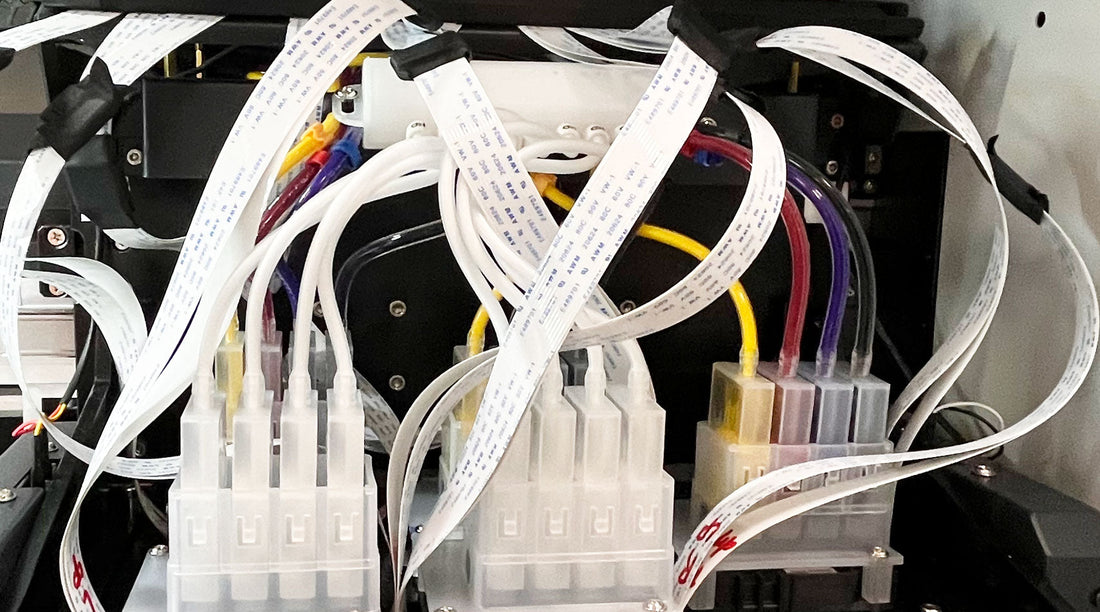

Is it Necessary to Change Your Printhead Cables?

Why You Should Replace Printhead Cables When Installing a New DTF Printhead

When installing a new printhead on a DTF printer—such as the X5 DTF System—it is critical to replace the printhead cables at the same time. Reusing old cables may seem harmless, but it is one of the most common causes of new printhead failure in Direct-to-Film (DTF) printing systems.

Why Printhead Cable Replacement Is Essential

Printhead cables transmit high-speed electrical signals between the printer’s main board and the printhead. Over time, these cables can develop internal issues such as:

Micro-damage within the cable traces

• Voltage instability
• Ink contamination
• General wear from heat and movement

Even when a cable appears to be in good condition externally, internal degradation can still occur. Connecting an old cable to a new printhead can result in:

• Nozzle deflection
• Missing ink channels
• Unstable firing signals
• Electrical short circuits

In severe cases, a faulty cable can instantly destroy a new printhead and potentially damage the printhead control board, leading to expensive repairs.

Replacing the cables during printhead installation is a simple and inexpensive way to protect these critical components.

How to Identify the Correct Printhead Cable

To ensure you select the correct replacement cable, verify the following specifications:

Length
Measure the total cable length in millimeters (mm) to ensure proper routing inside the printer.

Width
Measure the width of the flat flexible cable (FFC) to match the connector size.

Number of Pins
Count the total number of pins to ensure compatibility with both the printhead and the printer’s main board.

Pin Pitch
Confirm the spacing between pins. Common pitch sizes are 0.5 mm or 1.0 mm.

Orientation
Check the contact orientation of the cable. Some cables have contacts on the same side (Type A), while others have contacts on opposite sides (Type B).

Need Help Identifying Your Cable?

If you are unsure which cable is correct for your printer, provide the following information:

• Printer brand and model
• Printhead model
• Clear photos of both sides of the original cable

DTF Tech Gurus can help identify the correct replacement cable to ensure proper installation. Simply chat with us on the website or send an email to support@imperialdtf.com

Best Practices for Printhead Installation

Follow these best practices to protect your DTF printer and printhead investment:

• Always replace printhead cables when installing a new printhead
• Never reuse old, damaged, or ink-contaminated cables
• Use proper ESD (electrostatic discharge) protection during installation
• Avoid bending, twisting, or sharply folding the cables

Protect Your Printhead Investment

Replacing printhead cables is a small but critical step in maintaining a reliable DTF printing system. This simple precaution helps prevent electrical damage, protects your printer’s main board, and significantly reduces the risk of premature printhead failure.
