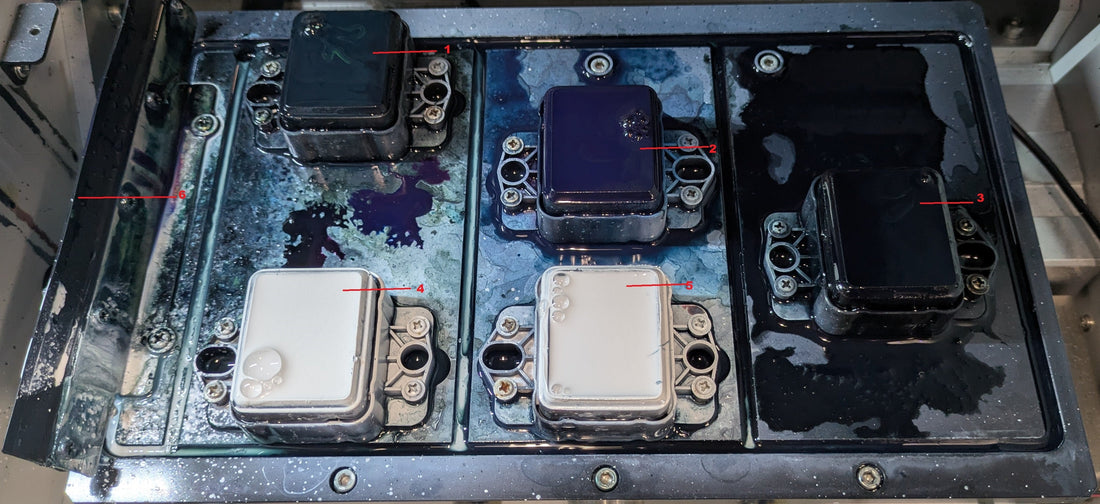

How to Replace a Cap Station and Cap Pad

Why the Cap Pad Is One of the Most Important Parts of Your DTF Printer

When DTF printer owners experience nozzle loss, poor cleanings, inconsistent nozzle checks, or printhead performance issues, they often focus on the printhead itself. However, one of the most common causes of print quality problems is a neglected cap station cap pad.

The cap pad is responsible for creating a seal against the bottom of the printhead during cleaning cycles and when the printer is parked. This seal allows the maintenance system to pull ink through the printhead, keeping nozzles hydrated and functioning properly.

On X5 DTF, Velox, Velox Plus, Binterjet, Nusign 3060, and Spartan printers, the cap pad is a wear item that should be inspected regularly and replaced whenever it becomes clogged, damaged, or unable to maintain a proper seal.

Because cap pads are constantly exposed to ink, cleaning solution, and dried pigment, they eventually become contaminated. As buildup accumulates inside the foam structure, cleaning cycles become less effective and print quality begins to suffer.

Signs Your Cap Pad Needs Replacement

A worn or clogged cap pad can create several symptoms that are often mistaken for printhead failure:

• Missing nozzles that do not recover after cleanings
• Inconsistent nozzle checks
• Poor suction during cleaning cycles
• Excessive ink buildup around the cap station
• Frequent head cleanings with little improvement
• Printheads that appear dry after sitting overnight
• Difficulty maintaining white ink performance

If you cannot remember the last time the cap pad was cleaned or replaced, it is often worth replacing it before troubleshooting more expensive components.

Why Cap Pads Fail

DTF printers spend their entire lives moving ink through the maintenance system.

During operation, ink, cleaning solution, and waste materials accumulate inside the cap pad. While printing, the cap pad may dry out between cleaning cycles, allowing pigment and residue to harden inside the foam.

Over time:

• Ink residue restricts airflow
• Cleaning solution can no longer flow properly
• Suction efficiency decreases
• The printhead loses its protective seal
• Automatic cleaning cycles become ineffective

This small component plays a major role in overall printer health despite its low replacement cost.

Tools Needed

Before beginning, gather the following:

• Replacement cap pad assembly
• Small screwdriver
• Lint-free wipes
• Cleaning solution if performing maintenance
• Gloves (recommended)

Step-by-Step Cap Pad Replacement

Step 1: Move the Cap Station to the Raised Position

For easier access, position the cap station in its uppermost position.

This allows you to see the mounting hardware more clearly and makes routing the tubing significantly easier during reinstallation.

Step 2: Remove the Mounting Screws

Locate the cap pad assembly.

Remove:

• Two screws on the left side
• Two screws on the right side

Once the screws are removed, the cap pad assembly can be lifted from the cap station.

Step 3: Disconnect the Tubing

Identify the hose connected to the cap pad.

On most X5, Velox, Velox Plus, Binterjet, Nusign 3060, and Spartan configurations, the tubing can be disconnected at the surgical tubing connection.

Carefully separate the tubing from the existing cap pad assembly.

Step 4: Transfer the Hose to the New Cap Pad

Before installing the replacement cap pad, move the hose from the old assembly to the new one.

Verify the connection is secure and free from kinks.

A loose connection can reduce suction and create maintenance problems.

Step 5: Route the Tubing Back Through the Opening

Feed the tubing and coupler back through the mounting hole.

Having the cap station raised makes this process much easier because you can access the back side of the opening and guide the fitting into place with your fingers.

Step 6: Install the New Cap Pad

Position the replacement cap pad onto the cap station.

Reinstall: Two screws on the left side & Two screws on the right side

Tighten securely without overtightening.

Step 7: Verify Proper Operation

After installation:

• Perform a cleaning cycle
• Check for proper suction
• Run a nozzle check
• Confirm the printhead parks correctly on the cap pad

A properly functioning cap pad should create a good seal and improve cleaning performance immediately.

Preventative Maintenance Recommendations

The best way to avoid printhead issues is to include cap station maintenance as part of your regular printer care routine.

Recommended maintenance practices include:

Weekly

• Inspect the cap pad surface
• Remove excess ink buildup
• Verify the cap pad remains soft and flexible

Monthly

• Deep clean the cap station
• Inspect tubing for restrictions
• Verify suction performance

As Needed

• Replace clogged or damaged cap pads
• Replace pads that no longer seal properly
• Replace pads contaminated with excessive dried ink

The Cost of Ignoring Cap Station Maintenance

Many DTF operators spend hours troubleshooting nozzle issues when the real problem is a clogged cap pad.

A cap pad is one of the least expensive maintenance items on the printer, yet it directly affects:

• Printhead health
• Nozzle recovery
• Cleaning efficiency
• Ink system performance
• Long-term printer reliability

Replacing a cap pad takes only a few minutes but can prevent costly downtime and unnecessary printhead replacements.

Final Thoughts

Whether you operate an X5 DTF, Velox, Velox Plus, Binterjet, Nusign 3060, or Spartan printer, maintaining the cap station should be considered mandatory preventative maintenance.

The cap pad is a small component with a big responsibility. It protects the printhead, enables effective cleanings, and helps ensure consistent print quality day after day.

When nozzle checks begin to deteriorate and cleaning cycles become less effective, don't immediately assume the printhead is failing. Start by inspecting the cap station. In many cases, replacing a simple cap pad can restore proper maintenance performance and keep your printer running at its best.
